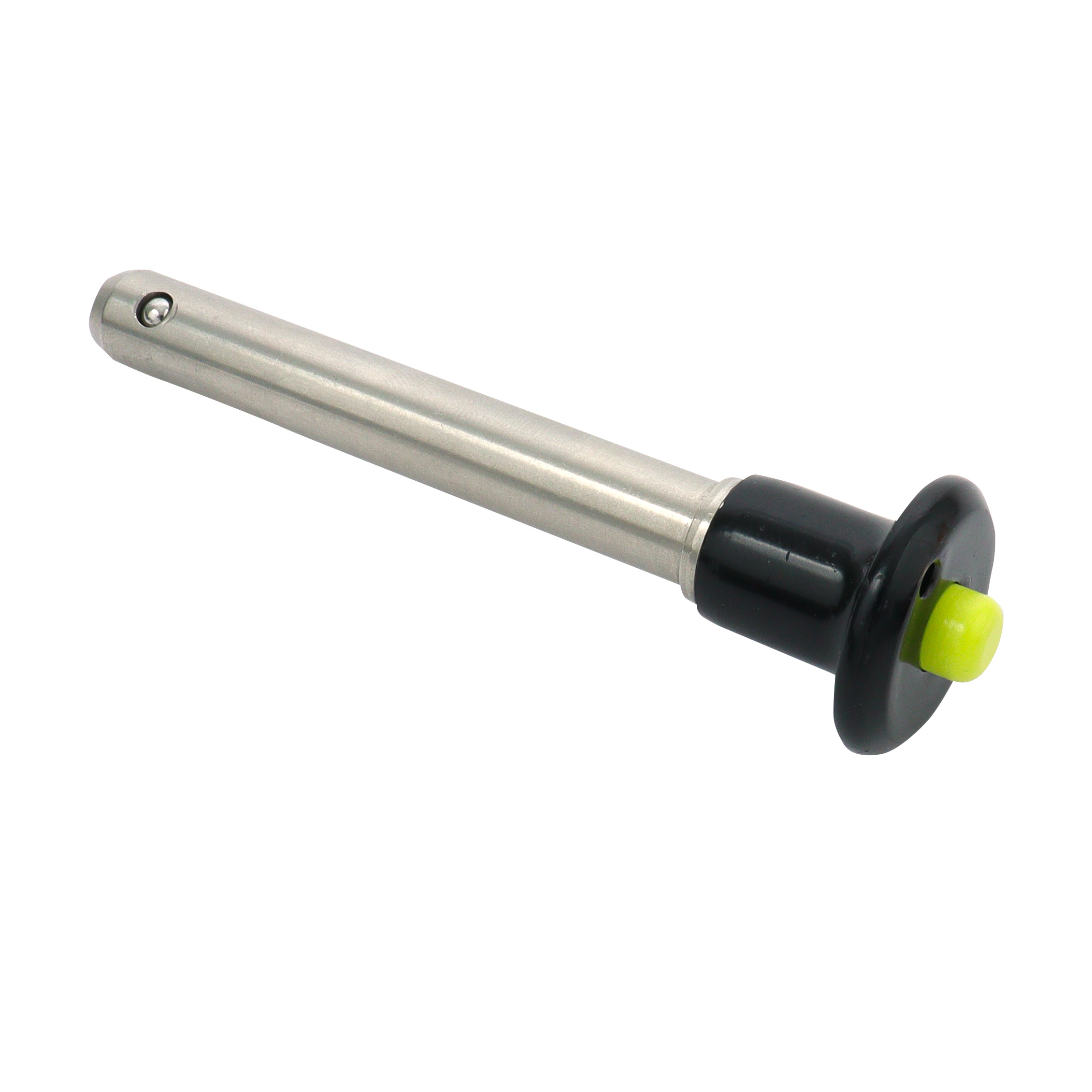

Clamping pin for blind hole

- Material Stainless steel 303

- Clamp lock pins with button handle

- For rapid fastening, locking, adjusting, replacing, and securing in blind holes (H11) without additional locating bushings
- Quick and easy to release for connections which are made repeatedly
- Materials :
Pin stainless steel 303
Handle Black aluminium
- Working T°: -30°C to +150°C

Operation
Clamp lock pins can be used in blind holes. The holding forces achieved in an H11 borehole depends on the material of the counterpart:
- Steel, hardened: min. 30 N
- Steel, soft: min. 120 N
- Stainless steel, soft: min. 120 N
- Aluminium alloy: min. 250 N

From 42,26 € (excl VAT)

Discount
Qty	+1	+6	+10
Disc.	List	-5%	on request

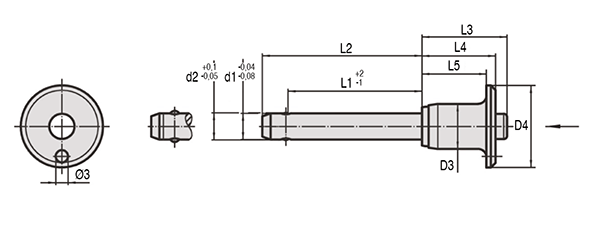

Part n°	ØD1	L	ØD2	ØD4	L2	L4	Shearing resis two-shear (kN)	Price (excl VAT)	Stock
BAB10-100/TB/SS	10	100	10,3	25	110,0	22,6	60	67,98 €	1
BAB10-20/TB/SS	10	20	10,3	25	30,0	22,6	60	77,18 €	1
BAB10-40/TB/SS	10	40	10,3	25	50,0	22,6	60	71,39 €	1
BAB10-60/TB/SS	10	60	10,3	25	70,0	22,6	60	75,22 €	1
BAB10-80/TB/SS	10	80	10,3	25	90,0	22,6	60	75,22 €	1
BAB12-100/TB/SS	12	100	12,3	35	111,0	27,3	87	83,28 €	1
BAB12-20/TB/SS	12	20	12,3	35	31,0	27,3	87	69,22 €	1
BAB12-40/TB/SS	12	40	12,3	35	51,0	27,3	87	72,63 €	1
BAB12-60/TB/SS	12	60	12,3	35	71,0	27,3	87	76,15 €	1
BAB12-80/TB/SS	12	80	12,3	35	91,0	27,3	87	79,25 €	1
BAB16-120/TB/SS	16	120	16,5	40	134,4	34,5	155	139,69 €	1
BAB16-30/TB/SS	16	30	16,5	40	44,4	34,5	155	119,02 €	1
BAB16-60/TB/SS	16	60	16,5	40	74,4	34,5	155	127,39 €	1
BAB16-90/TB/SS	16	90	16,5	40	104,4	34,5	155	132,77 €	1
BAB6-10/TB/SS	6	10	6,2	20	17,4	17,6	21	42,26 €	1
BAB6-20/TB/SS	6	20	6,2	20	27,4	17,6	21	42,26 €	1
BAB6-40/TB/SS	6	40	6,2	20	47,4	17,6	21	44,74 €	1
BAB6-60/TB/SS	6	60	6,2	20	67,4	17,6	21	47,01 €	1
BAB8-10/TB/SS	8	10	8,3	25	18,6	22,6	38	46,18 €	1
BAB8-20/TB/SS	8	20	8,3	25	28,6	22,6	38	45,77 €	1
BAB8-40/TB/SS	8	40	8,3	25	48,6	22,6	38	49,08 €	1
BAB8-60/TB/SS	8	60	8,3	25	68,6	22,6	38	50,42 €	1
BAB8-80/TB/SS	8	80	8,3	25	88,6	22,6	38	52,28 €	1
