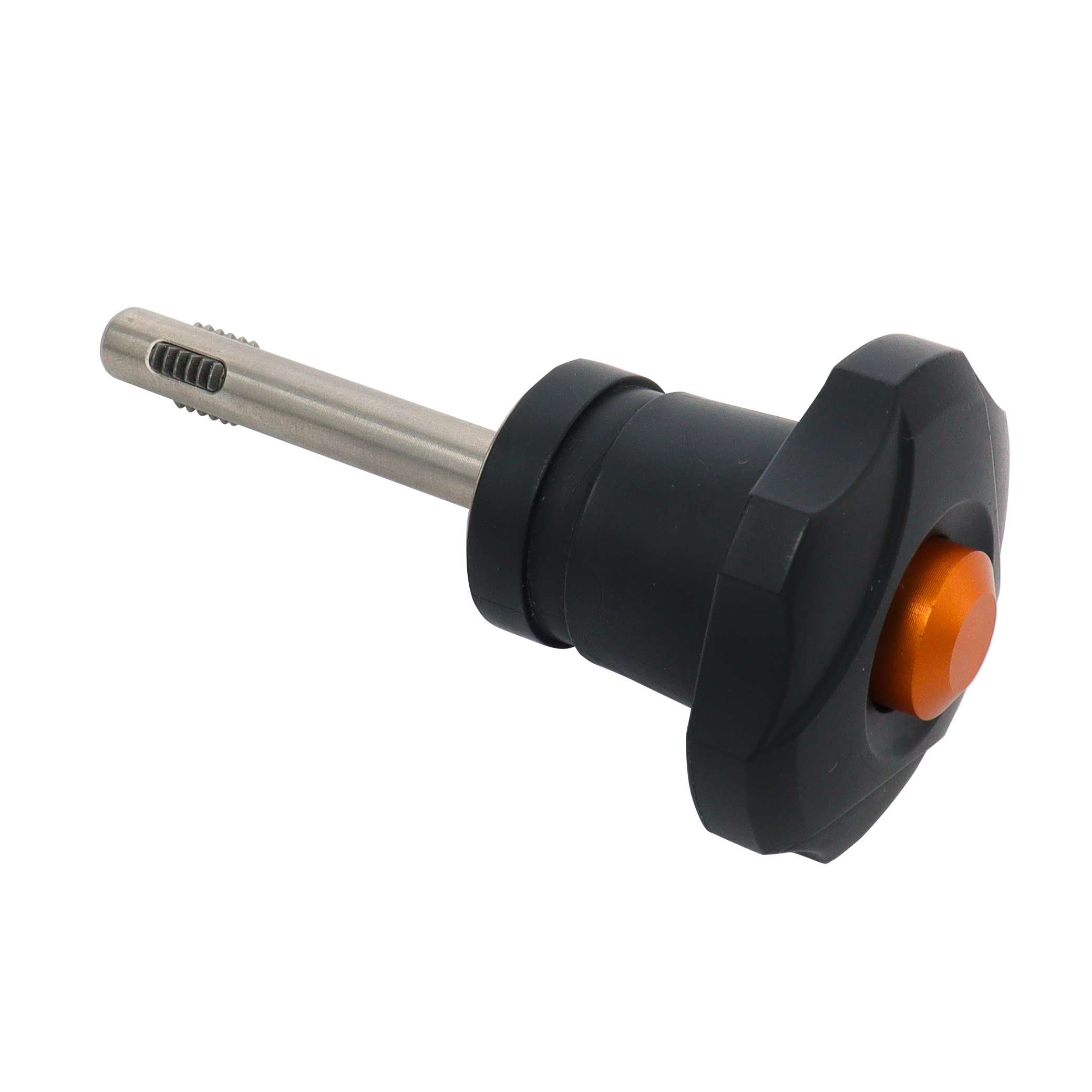

- Self-locking threaded lock pin - Quick fastening - Used for quick fastening, locking, adjusting, changing, clamping, connecting and securing - Material : Pin Stainless steel Handle Black PA6 - Working T°: -30°C to +80°C Uses - The segments retract when the button is pressed. Insert the pin into the threaded hole (this avoids the need to screw in a standard bolt). Once it is in place, release the button and tighten to secure it. To remove, unscrew by a quarter turn and remove the pin by pressing the button Info - Also exists in stainless steel * Average value established in trials ** Shearing resistance similar to DIN 50141; values apply to applications in plugged condition (without applied tightening torque)
