Home SHOP Mechanical drive Shock absorbersElastic dampers Conical elasto buffer

Conical elasto buffer NEW STAINLESS STEEL

- Material Stainless steel
 - Mounting 1 side male

- Rubber buffer suitable for use in the food industry

- FDA compliant
- Materials:
Frame: 316 stainless steel
Cylinder: FDA-compliant blue silicon
- Medium hardness, Swhore 55A
- Temperature range: -30 °C to +180 °C

Applications
- End stop
- Supporting foot
From 11,21 € (excl VAT)
Discount
Qty +1  +6 +20 +40
Disc.List -10% -20 % on request
Part n° Price (excl VAT) Stock Order
D-KON10-50-17/SS/BLU 24,32 € 1
D-KON6-25-17/SS/BLU 11,21 € 1
D-KON8-30-15/SS/BLU 16,80 € 1

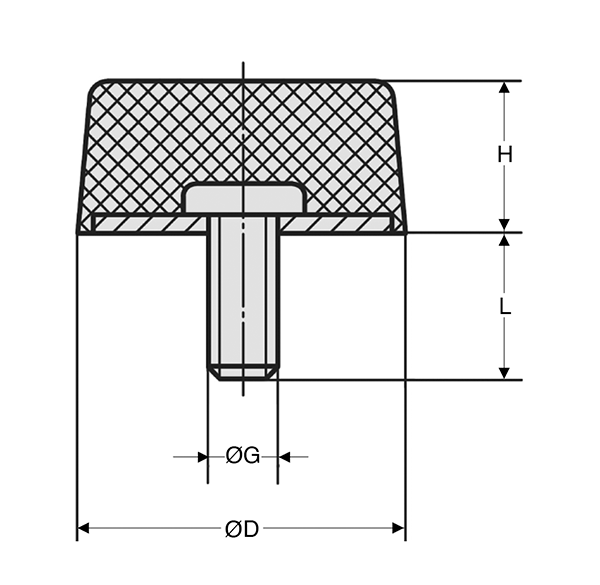

Dimensions in mm
You have a special request or require more information
on this product? Contact us
THE RANGE

You can find all our standard parts in our catalogues which can be downloaded
FREE OF CHARGE

Designed to complement and enhance our 5-volume 2021 catalogs, this catalog gives you access to the latest innovations without having to renew your existing documentation. Indexing and positioning – Operating elements - Fastening systems - Indicators - Springs - Vibrations - Feet - Wire rope fitting - Fixing - Screws Couplings for servo-motors - Transmission couplings - Universal joints and rigid couplings - Clutches - Assembly elements - Motor-gearboxes – Gearboxes Rotary motion - Hinge and ball joints - Linear motion - Driving screws – Drive modules Pulleys and timing belts - Timing pulleys and belts - Chains and sprockets -Chain and belt tensioners - Bevel gear - Worms and wheels - Miscellaneaous gears - Racks - Spur gears - Parallel axis helical gears - Crossed axis helical gears - Precision bevel gears - Precision worms and wheels - Precision racks - Precision spur gears - Ground spur gears - Precision helical gears Machine tools parts - Manutention - Plate chains and accessories - Guides - Detection - Conveyor components - Brushes - Casing - Round tube structures - Square tube structures - Modular structures - Accessories for modular structure All products on hpceurope.com Drawings for completion when ordering customised parts -- Worms and wheels - Gears - Pulleys - Chain sprockets - racks - Ball pins - Casters - Brushes ...
| D-KON10-50-17/SS/BLU| D-KON6-25-17/SS/BLU| D-KON8-30-15/SS/BLU
https://shop.hpceurope.com/pdf/frPDFauto/KON.pdf
