Home SHOP Gears Spur gearsSpur gears Spur gear with clamp

Spur gear with clamp NEW

- Material Teeth in polyacetal
 - Module 1,0

- Spur gear are attached to the shaft
by a friction coupling

- Precision grade JIS grade N10 (JIS
B1702-1: 1998)
- Material:
Teeth polyacetal
Hub Stainless steel 303

Assembly
- Recommended shaft tolerances: g6,
h6 or h7
- Torque slippage should be considered
when making a selection.
From 138,62 € (excl VAT)
Discount
Qty +1  +2 +5
Disc.List -5% on request
Part n° Price (excl VAT) Stock Order
ZG1-100/SC 243,65 € 1
ZG1-20/SC 138,62 € 1
ZG1-24/SC 141,40 € 1
ZG1-25/SC 141,94 € 1
ZG1-30/SC 143,63 € 1
ZG1-32/SC 144,19 € 1
ZG1-36/SC 150,57 € 1
ZG1-40/SC 151,68 € 1
ZG1-50/SC 156,67 € 1
ZG1-60/SC 157,78 € 1
ZG1-80/SC 207,25 € 1

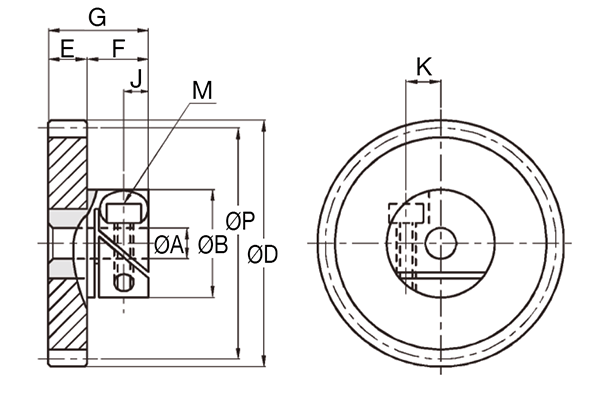

Dimensions in mm
You have a special request or require more information
on this product? Contact us
