Tee nuts with pronge

- Socket nut that easily inserts into soft materials
- Remains in place without turning
- Material : Steel zinc plated

Advantages
- Tee nuts with pronge increase clamping quality in soft
materials (wood, panels, chipboard, plastics)
- Repeated tightening without damaging the surface

Info
- Sold by the packet

From 12,95 € (excl VAT)

Discount
Qty	+1	+6	+10
Disc.	List	-10%	on request

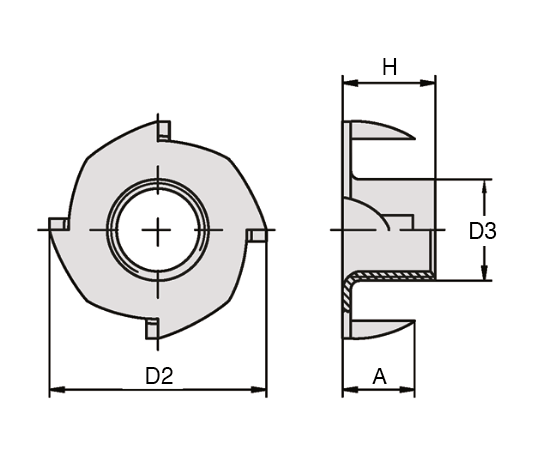

Part n°	Thread ØM	ØD2	ØD3	H	A	Qty per box	Price (excl VAT)	Stock
EGRM10-13/B	M10	25	11,5	13	11	100	17,63 €	1
EGRM4-6/B	M4	15	5	6	5	200	17,89 €	1
EGRM5-8/B	M5	17	6,5	8	7	200	14,25 €	1
EGRM6-12/B	M6	19	7,5	12	8	200	20,38 €	1
EGRM6-9/B	M6	19	7,5	9	7	200	16,43 €	1
EGRM8-11/B	M8	22	10	11	9	100	12,95 €	1
EGRM8-15/B	M8	22	10	15	10	100	18,33 €	1

You have a special request or require more information
on this product? Contact us
