Home SHOP Mechanical drive Shock absorbersElastic dampers Conical elasto buffer

Conical elasto buffer NEW STAINLELSS STEEL GREY

- Material Stainless steel
 - Mounting Male

- Large degree of deformation accepted thus absorbing large amounts of energy

- Materials:
Frame: 316 stainless steel
Cylinder: Grey natural rubber
- Medium hardness, Shore 55A
- Temperature range: -30 °C to +80 °C

Applications
- End stop
- Supporting foot
From 7,68 € (excl VAT)
Discount
Qty +1  +6 +20 +40
Disc.List -10% -20 % on request
Part n° Price (excl VAT) Stock Order
D-ZY10-50-20/SS/GREY 26,95 € 1
D-ZY10-50-30/SS/GREY 34,26 € 1
D-ZY10-50-40/SS/GREY 41,94 € 1
D-ZY3-8-8/SS/GREY 7,68 € 1
D-ZY4-10-10/SS/GREY 7,68 € 1
D-ZY4-10-15/SS/GREY 7,68 € 1
D-ZY4-15-10/SS/GREY 8,12 € 1
D-ZY4-15-8/SS/GREY 7,68 € 1
D-ZY6-20-10/SS/GREY 9,45 € 1
D-ZY6-20-15/SS/GREY 10,42 € 1
D-ZY6-20-20/SS/GREY 10,91 € 1
D-ZY6-20-8/SS/GREY 9,05 € 1
D-ZY6-25-10/SS/GREY 9,45 € 1
D-ZY6-25-15/SS/GREY 9,86 € 1
D-ZY6-25-20/SS/GREY 10,71 € 1
D-ZY6-25-25/SS/GREY 12,20 € 1
D-ZY6-25-8/SS/GREY 9,45 € 1
D-ZY8-30-15/SS/GREY 14,42 € 1
D-ZY8-30-20/SS/GREY 15,03 € 1
D-ZY8-30-30/SS/GREY 18,38 € 1
D-ZY8-30-40/SS/GREY 21,37 € 1
D-ZY8-40-15/SS/GREY 18,83 € 1
D-ZY8-40-20/SS/GREY 21,33 € 1
D-ZY8-40-30/SS/GREY 22,70 € 1

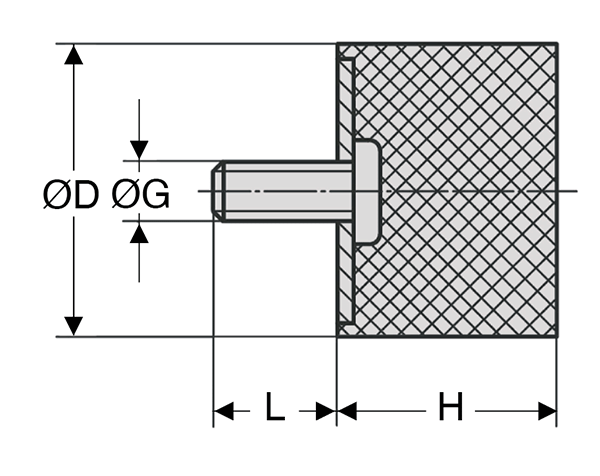

Dimensions in mm
You have a special request or require more information
on this product? Contact us
