Conical elasto buffer NEW STAINLESS STEEL

- Material Stainless steel
 - Mounting Male
 - For foodstuff sector

- Rubber buffer suitable for use in the food industry

- FDA compliant
- Materials:
Frame: 316 stainless steel
Cylinder: FDA-compliant blue silicon
- Medium hardness, Shore 55A
- Temperature range: -30 °C to +180 °C

Applications
- End stop
- Supporting foot
From 3,64 € (excl VAT)
Discount
Qty +1  +6 +20 +40
Disc.List -10% -20 % on request
Part n° Price (excl VAT) Stock Order
D-ZY10-50-20/SS/BLU 21,82 € 1
D-ZY10-50-30/SS/BLU 25,57 € 1
D-ZY3-8-8/SS/BLU 3,64 € 1
D-ZY4-10-10/SS/BLU 3,80 € 1
D-ZY4-10-15/SS/BLU 5,05 € 1
D-ZY4-15-10/SS/BLU 5,05 € 1
D-ZY4-15-15/SS/BLU 5,21 € 1
D-ZY4-15-6/SS/BLU 5,01 € 1
D-ZY4-15-8/SS/BLU 5,05 € 1
D-ZY6-20-10/SS/BLU 8,56 € 1
D-ZY6-20-15/SS/BLU 7,68 € 1
D-ZY6-20-20/SS/BLU 8,08 € 1
D-ZY6-20-25/SS/BLU 8,85 € 1
D-ZY6-20-5/SS/BLU 8,16 € 1
D-ZY6-20-8/SS/BLU 8,44 € 1
D-ZY6-25-10/SS/BLU 8,40 € 1
D-ZY6-25-15/SS/BLU 9,21 € 1
D-ZY6-25-20/SS/BLU 9,86 € 1
D-ZY6-25-25/SS/BLU 10,34 € 1
D-ZY6-25-8/SS/BLU 8,24 € 1
D-ZY8-30-15/SS/BLU 11,47 € 1
D-ZY8-30-20/SS/BLU 12,12 € 1
D-ZY8-30-30/SS/BLU 14,30 € 1
D-ZY8-40-15/SS/BLU 15,68 € 1
D-ZY8-40-20/SS/BLU 16,56 € 1
D-ZY8-40-30/SS/BLU 18,83 € 1

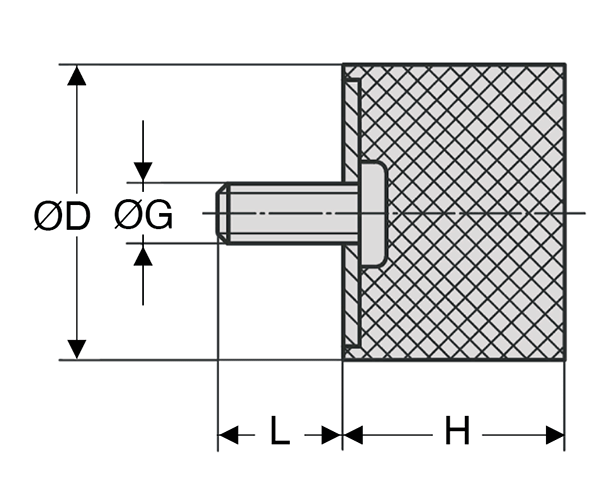

Dimensions in mm
You have a special request or require more information
on this product? Contact us
